Radiation Detection

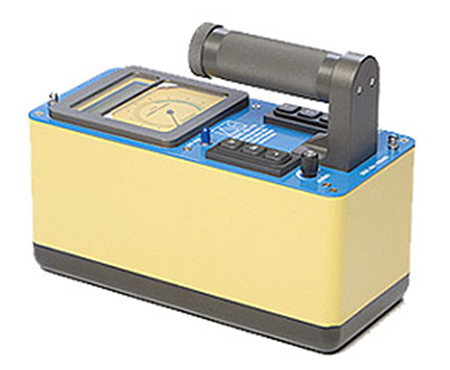

RZ-133 Neutron/Gamma Ray Detection

Delta Epsilon has developed and patented a unique radiation survey monitor that represents a breakthrough in the high-efficiency detection and rapid localization of sources of gamma and neutron emitting radiation.

Key Features & Specifications

Rapid survey capability from sea, ground, or air — seaborne applications could screen vessels without boarding
Gamma sensitivity rated 50× higher than ANSI N-42.33 standard handheld instruments (7,000 cps response for 1mCi Cs-137 at 5 meters)
Enhanced gamma spectroscopy using NaI with improved peak-to-Compton ratio
3-D gamma directional array for azimuthal and vertical source direction
Neutron sensitivity approximately 14× greater than ANSI N42.34 and IAEA standards (~50 c/s for 1μg Cf-252 at 5 meters)
Angular resolution better than 10 degrees for both neutron and gamma source direction

RZ-133 instrument features diagram, continued

Delta Epsilon is interested in a possible collaborative effort with an appropriate partner or entity to undertake further development and commercialization of these instruments and their unique capabilities.

Interested in a collaboration on the RZ-133?

Call us at 303-320-4764 Call us or send us a message.
