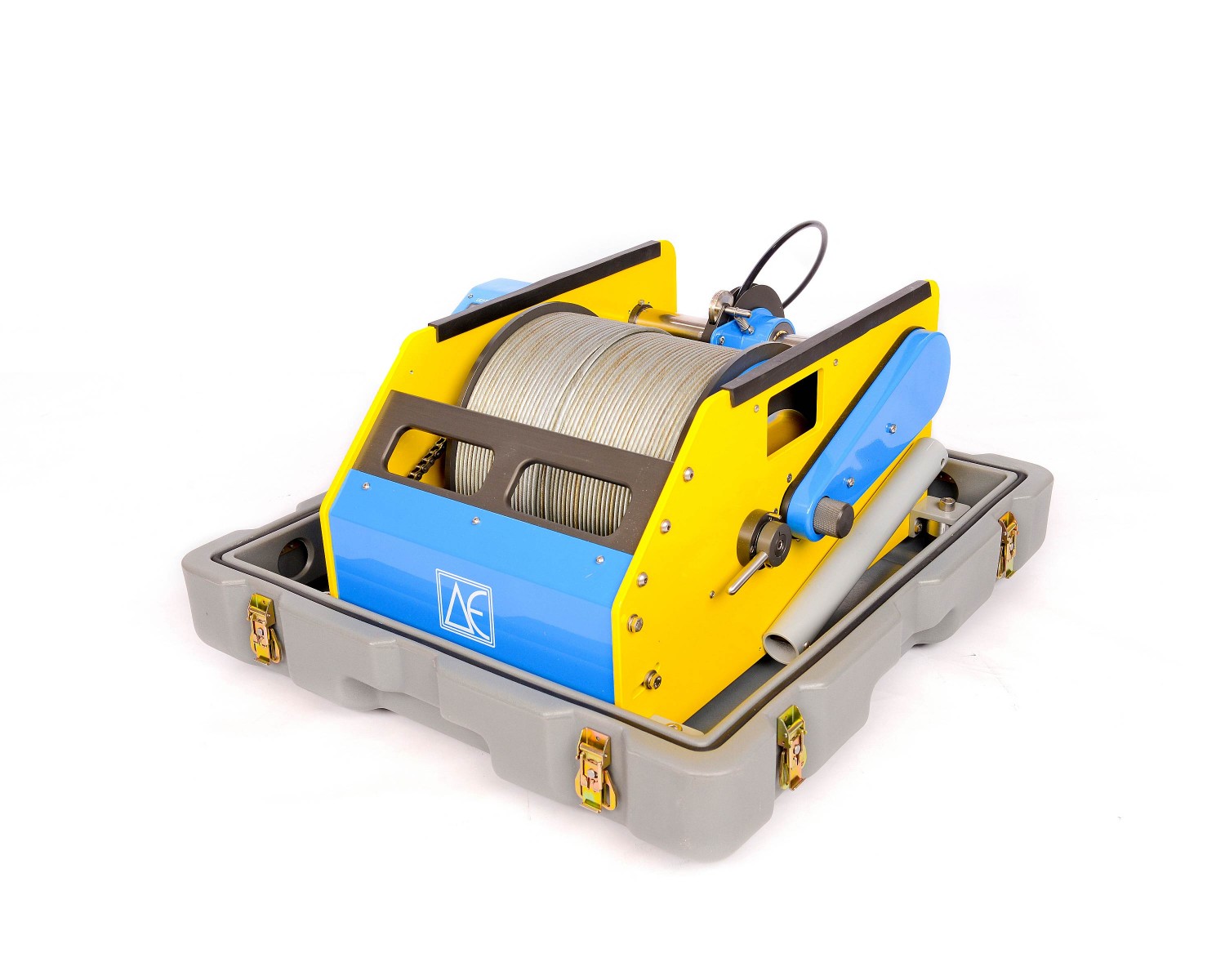

600DL Portable Borehole Logger
Our highest performance portable logger with maximum depth capability, featuring a 600-meter single conductor system.
A self-contained, integrated design minimizes external cables. The 600DL's motorized, fully automatic levelwind with disc brake requires minimal adjustment, and all critical elements are covered and protected from moisture, abrasive dirt, and mud.
Backlit digital depth and speed indicators and a USB-compatible PC interface pair with DELogger software for LAS-format data output. A 12-volt motor with planetary transmission and mechanical disc brake prevent reverse creep, with the winch drum always secured. Shock-mounted MIL spec case construction uses aluminum, stainless steel, and corrosion-resistant materials throughout.
Specifications
| Cable | 600M of Ø.125″ single conductor cable |
|---|---|
| Dimensions | 65.4cm × 61.6cm × 32.9cm |
| Weight | 30.0kg (66 Lbs) |
| Power | 12–14vdc @ 15A max |
| Probe Compatibility | All probes except video |
